커넥터 | M16

패널 타입

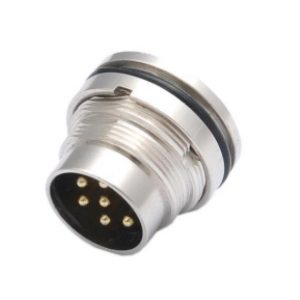

M16_조립식_Male panel connector

Male panel connector

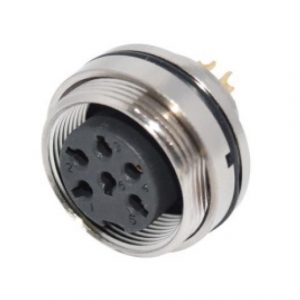

M16_조립식_Female panel connector

Female panel connector

조립식

M16_조립식_Male assembly connector

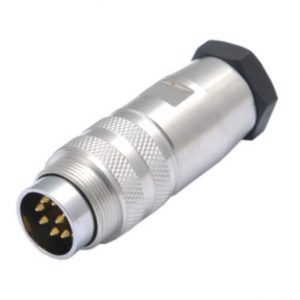

Male assembly connector

M16_조립식_Female assembly connector

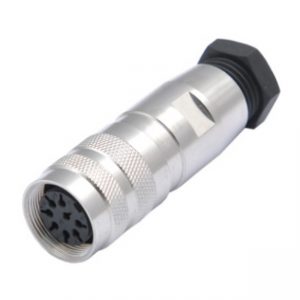

Female assembly connector

접점 레이아웃

M16_접점레이아웃 (1)

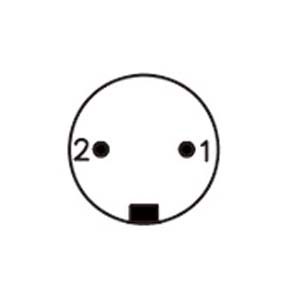

2Pins

M16_접점레이아웃 (2)

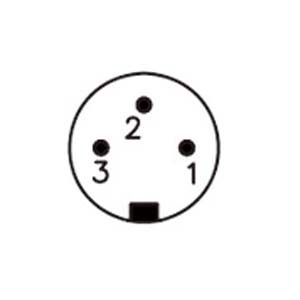

3Pins

M16_접점레이아웃 (3)

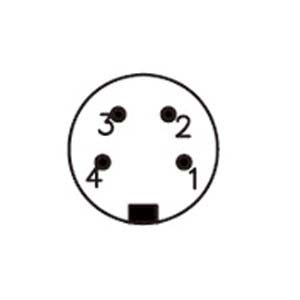

4Pins

M16_접점레이아웃 (4)

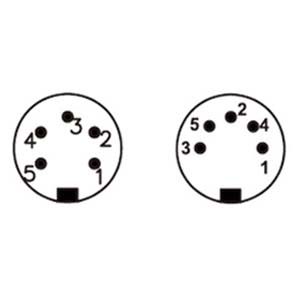

5Pins

M16_접점레이아웃 (5)

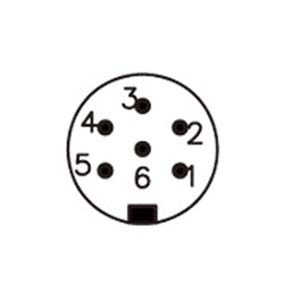

6Pins

M16_접점레이아웃 (6)

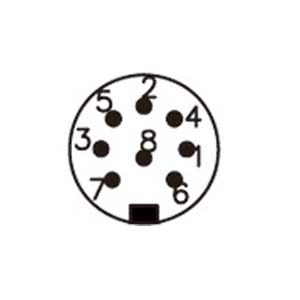

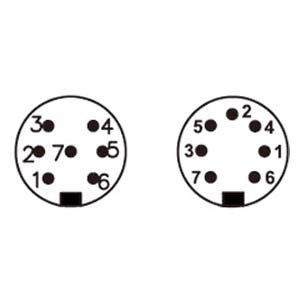

7Pins

M16_접점레이아웃 (7)

8Pins

M16_접점레이아웃 (8)

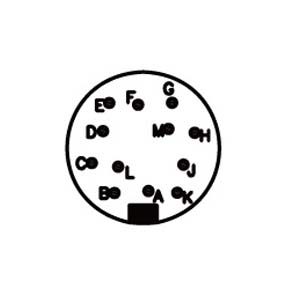

12Pins

M16_접점레이아웃 (9)

14Pins

M16_접점레이아웃 (10)

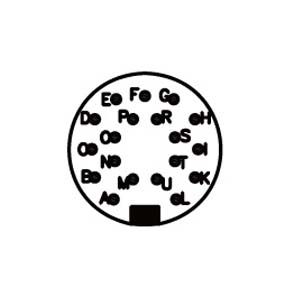

16Pins

M16_접점레이아웃 (11)

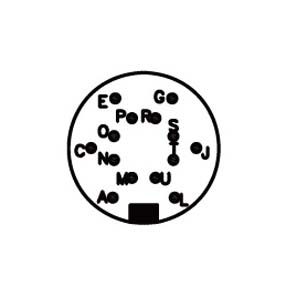

19Pins

M16_접점레이아웃 (12)

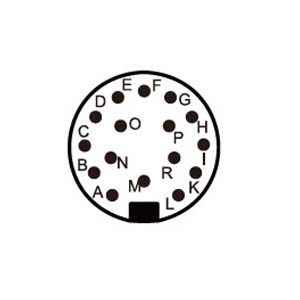

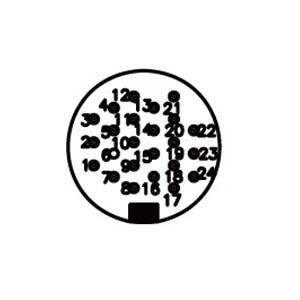

24Pins

참조 사양

조립식 Male/Female

참조사양 보기
Number of contacts 2 3DIN 4 5 5DIN 6DIN 7 7DIN 8DIN 12 14 16 19 24
Termination solder
Wire gauge max,0.75mm²
(max,20AWG) 		max,0.25mm²
(max,24AWG) 		0.14mm²
26AWG
Cable OD 5~7.5mm
Operating temperature -25°C~+85°C
Mechanical operation > 500 mating cycles
Rated voltage 25V 60V 250V 125V 60V
Rated current (40°C) 7A 6A 5A 3A 1A
Protection degree IP67/IP68
Contact resistance ≤5mΩ ≤3mΩ
Insulation resistance ≥100MΩ
Pin contant CuZn
Socket contact CuSn
Contact plating Au
