케이블 몰딩타입

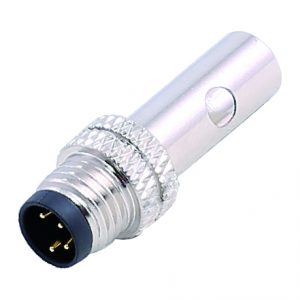

Male connector for over-molding

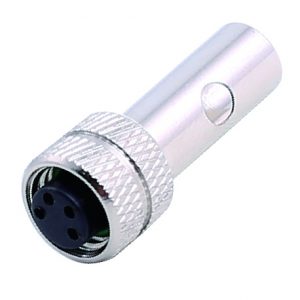

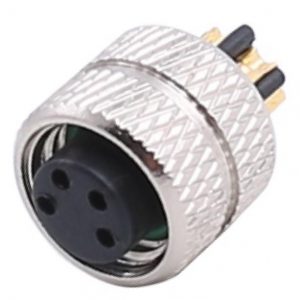

Female connector for over-molding
Male connector for over-molding
Female connector for over-molding
패널 타입

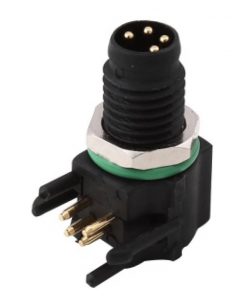

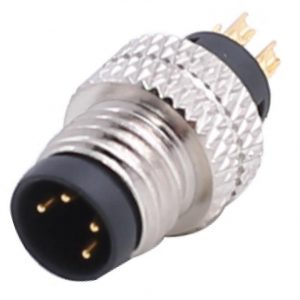

Male panel connector(90°)

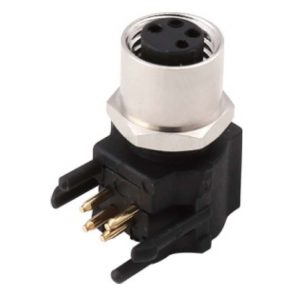

Female panel connector(90°)

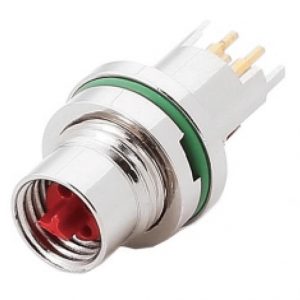

Female panel connecter
조립식

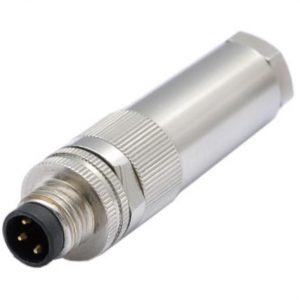

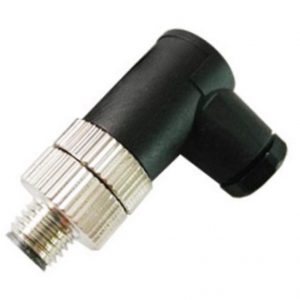

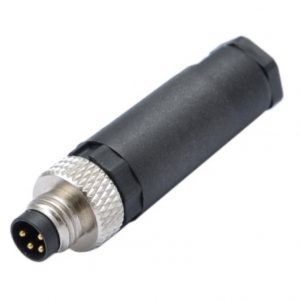

Male assembly connector

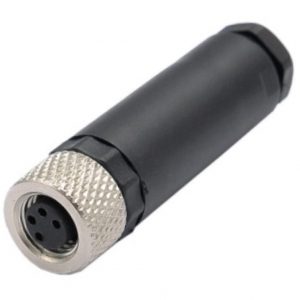

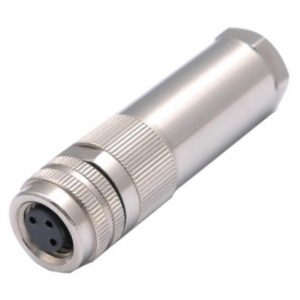

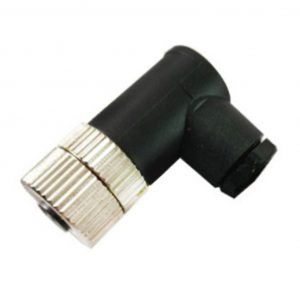

Female assembly connector
Male assembly connector
Female assembly connector
Male assembly connector
Female assembly connector
접점 레이아웃

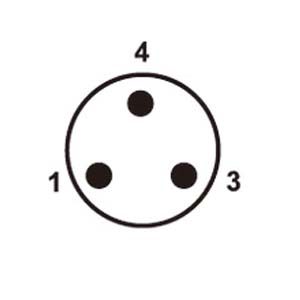

3Pins (A)

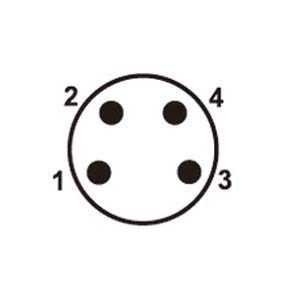

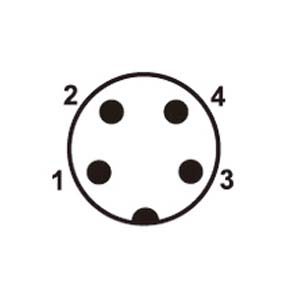

4Pins (A)
4Pins (A)

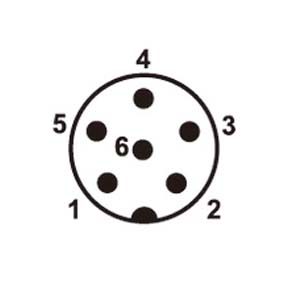

6Pins (A)

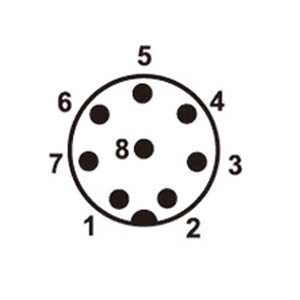

8Pins (A)

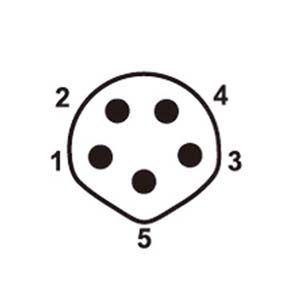

5Pins (B)

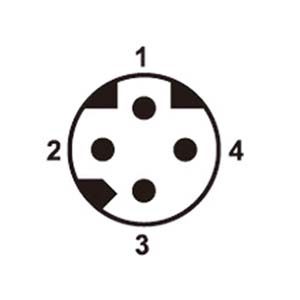

4Pins (D)

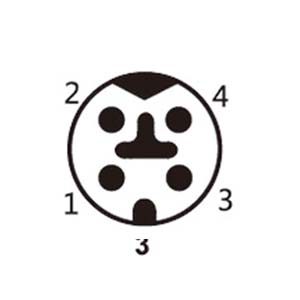

4Pins (P)
참조 사양
케이블 몰딩 타입 Male/Female
| Number of contacts | 3 | 4 | 5 | 6 | 8 |
| Termination | solder | ||||
| Wire gauge | 0.14/0.25/0.34 mm² (26/24/22 AWG) | ||||
| Operating temperature | -25°C~+85°C | ||||
| Mechanical operation | > 500 mating cycles | ||||
| Rated voltage | 60V | 30V | |||
| Rated current (40°C) | 3A | 1.5A | |||
| Protection degree | IP67/IP68 | ||||
| Contact resistance | < 10mΩ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Pin contact | CuZn | ||||
| Socket contact | CuSn | ||||
| Contact plating | Au | ||||
