케이블 몰딩 타입

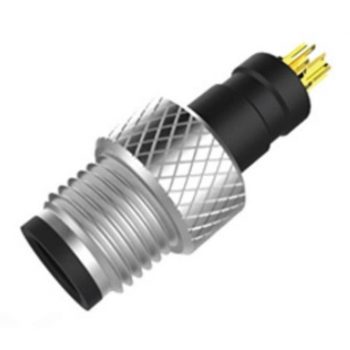

Male connector for over-molding

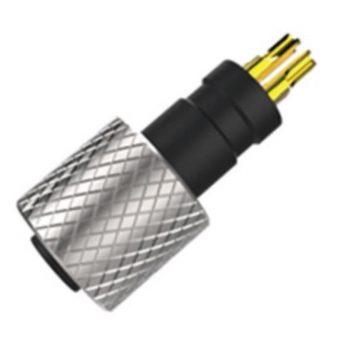

Female connector for over-molding
패널 타입

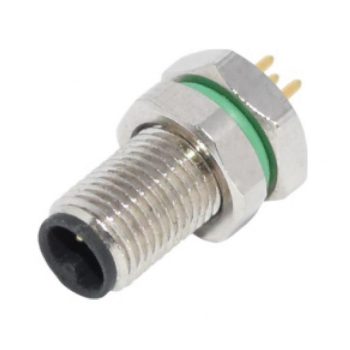

Male panel connecter

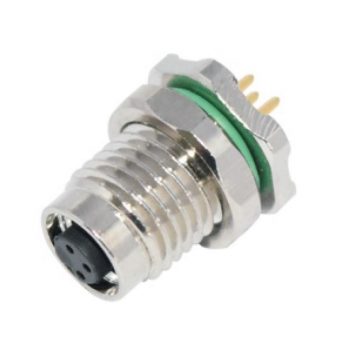

Female panel connecter

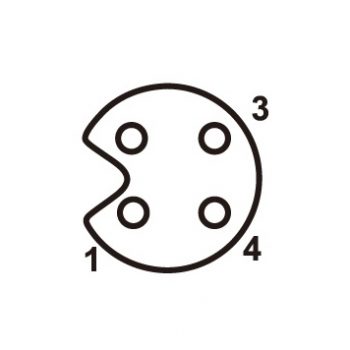

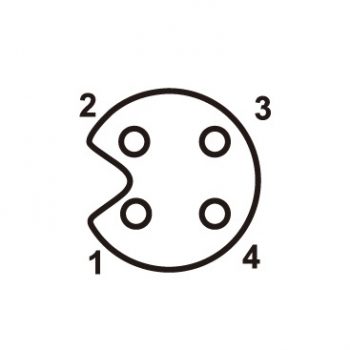

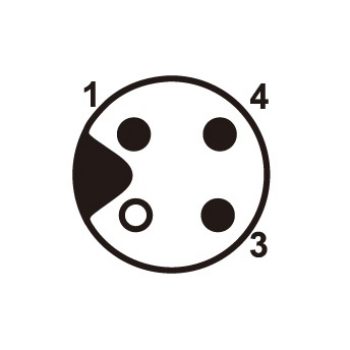

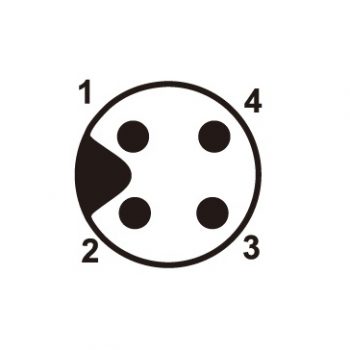

접점 레이아웃
3Pins
4Pins
3Pins
4Pins
참조 사양
케이블 몰딩 타입 Male/Female
| Number of contacts | 3 | 4 |
| Termination | solder | |
| Wire gauge | max 0.14 mm² / max 26 AWG | |
| Operating temperature | -25°C ~ +85°C | |
| Mechanical operation | > 500 mating cycles | |
| Rated voltage | 60V | |
| Rated current (40°C) | lA | |
| Protection degree | IP67/IP68 | |
| Contact resistance | < 10mΩ | |
| Insulation resistance | ≥100MΩ | |
| Pin contact | CuZn | |
| Socket contact | CuSn | |
| Contact plating | Au | |
